6381Y / BS 6004 PVC Cable
Our 6381Y cable is manufactured to BS6004, a British Standard covering electrical power, lighting and internal wiring. It is suitable for AC and DC power supplies on telecommunication industry equipment such as telephone exchanges and power applications where flexibility is required. It is suitable for BT installations as it meets the flammability requirements of BT M231.
This fixed wiring cable should not be exposed to the risk of mechanical damage. It can be installed in trays, clipped, or suspended.
Application:
Flexible single core insulated and sheathed PVC cable. Suitable for DC power supplies on telecoms equipment and power applications where flexibility is required.
Standards:
BS EN 60228, BS 6004, BS EN/IEC 60502-1
Flame Retardant according to BS EN/IEC 60332-1-2

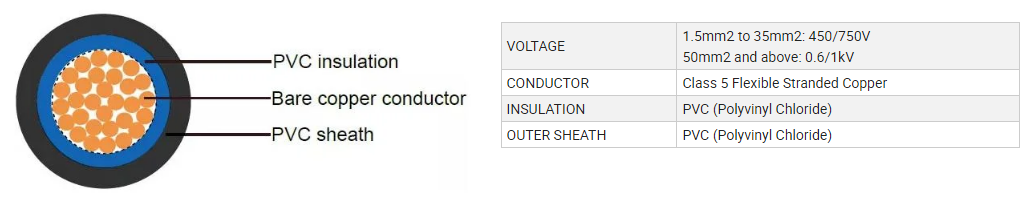

Construction:
CHARACTERISTICS
Characteristics:
Voltage Rating:
1.5mm2 to 35mm2: 450/750V
50mm2 and above: 0.6/1kV
Temperature Rating: -15°C to +70°C
Minimum Bending Radius:
Up to 50mm²: 3 x overall diameter
Above 70mm²: 4 x overall diameter
Should not be installed at temperatures below 0°C or above +60°C.
For more information please consult a member of the Cleveland Cable Sales Team.
Standard:
IEC 60227-2007 or as per customer's request
Some Type (Remarks: we can design and produce according to customer's request.)
|
Type
|
Name
|
Laying Site and Requirements
|
Long-time Permissible Working Temperature of Conductor(ºC)
|
|
227IEC01/05 BV BLV
|
Copper Conductor,PVC Insulated Wire
|
Fixed laid in the circumstance of indoor, conduit etc.
|
70
|
|
Aluminium Conductor,PVC Insulated Wire
|
|
227IEC 07 BV-90
|
Heat Resistant Copper Conductor,PVC Insulated Wire at 90ºC
|
Fixed laid in the circumstance of high temperature environment and can be laid indoor, conduit etc.
|
90
|
|
BVR
|
Copper Conductor,PVC Insulated Flexible Wire
|
Fixed laid where flexibility is required.
|
70
|
|
227-IEC10 BVV
|
Copper Conductor PVC Insulated and PVC Sheathed Round Wire
|
Fixed laid where high mechanical protection and moisture are required. They can be laid in the air or underground.
|
70
|
|
BLVV
|
Aluminium Conductor PVC Insulated and PVC Sheathed Round Wire
|
|
BVVB
|
Copper Conductor PVC Insulated and PVC Sheathed Flat Wire
|
|
BLVVB
|
Aluminium Conductor PVC Insulated and PVC Sheathed Flat Wire
|
|
227IEC 02 RV227 IEC 06 RV
|
Copper Conductor,PVC Insulated Flexible Connector
|
Mainly used at middle-light type movable euipments, instrument and meters, household appliances, power and lighting and the places where flexibility is required.
|
70
|
|
227IEC 42 RVB
|
Copper Conductor,PVC Insulated Flat Flexible Connector
|
|
RVS
|
Copper Conductor,PVC Insulated Flexible Twisting Connector
|
|
227IEC52 RVV 227IEC53 RVV
|
Copper Conductor PVC Insulated and PVC Sheathed Round Flexible Connector(Light and Common Type)
|
We have alarms on extruding insulation andjacket, to keep 100% quality.
Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.
10
No. of Production Lines:Above 10
7
Number of Foreign Trading Staff:7
3
The company has 3 factories
Our workshops and certifications
Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.
Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.

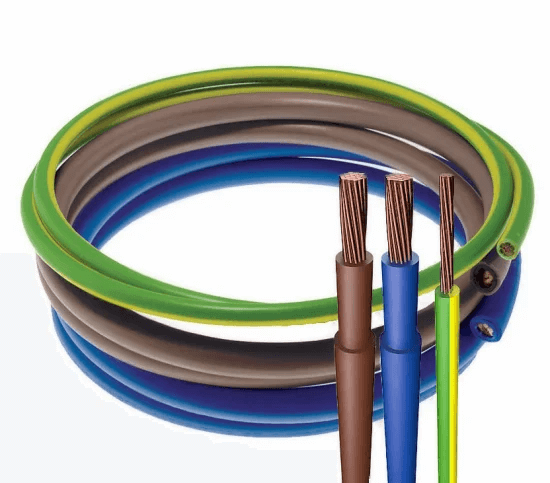

Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.
What is the lifespan of a typical electrical cable?
The lifespan can vary widely based on the type of cable and environmental factors, but many cables can last 20 years or more when properly installed and maintained.
What is your sample policy?
As a supplier, we believe that samples are necessary for both of us and our policy is to provide free samples whenever possible. However, if the sample structure is very complicated and we don't have it in stock and it needs to be customised, in this case we have to charge a sample fee. About the sample shipment, you need to pay the shipping fee, you can prepay us the shipping fee we help to send it by express agent, you can also choose express shipping fee to pay.
Conductor Structure of Power Cable
1. Conductors comply with IEC, AS/NZS and BSI standard requirements
2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.
3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
