Private Label ABC Bundle Conductor Wholesaler Suke

Construction:

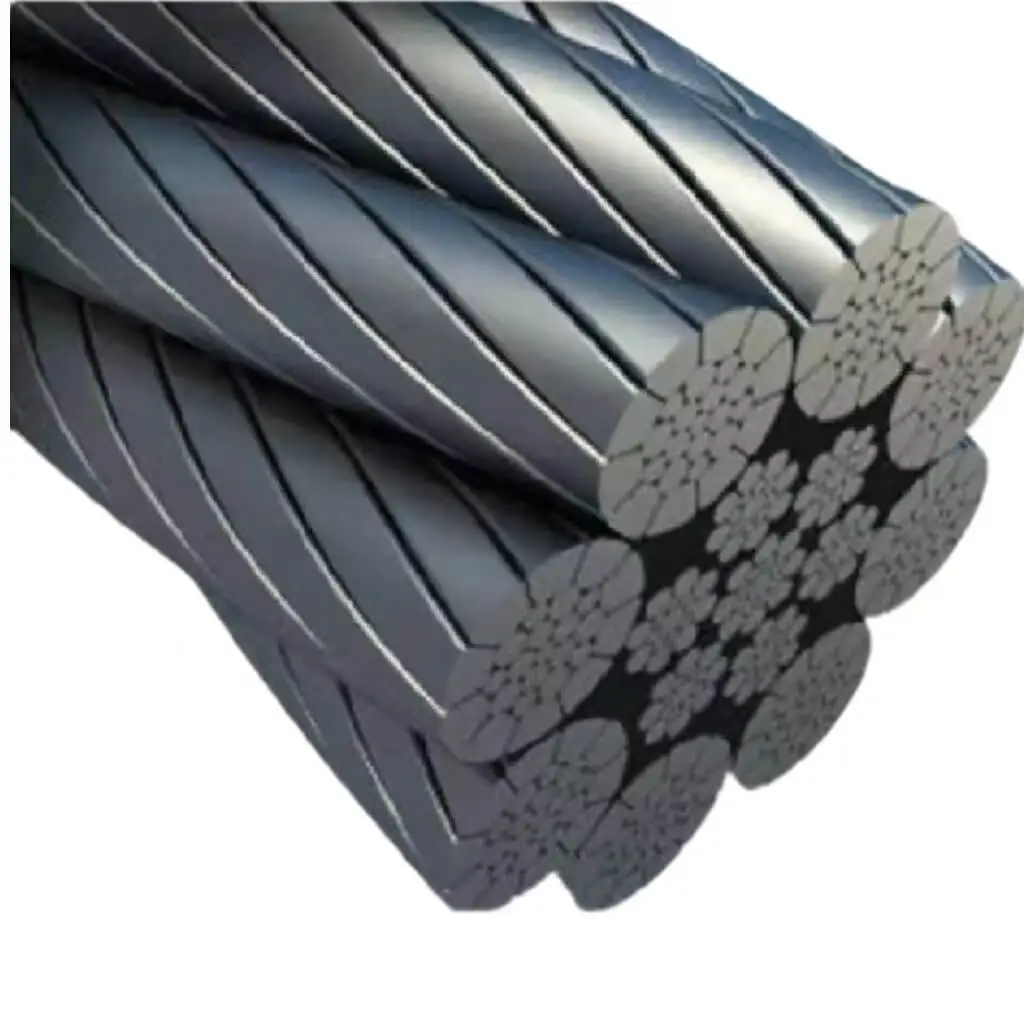

The single wires are concentrically stranded and wrapped helically around a central wire.

Application:

The galvanized single steel wires or stranded steel wires are suitable for cores of ACSR to improve its tensile strength. They can also be used in the aerial transmission line as the line material of ground connection to avoid lightning strikes.

Certification:

ISO9001, CE

ABC Bundle Conductor

Specification:

Partial Specification:

(1) ASTM A 475 Standard

No./Dia. of Wires	Approx. Stranded Dia.	Siemem Martin Grade	High Strength Grade	Extra-high Strength Grade	Approx. Weight	No./Dia. of Wires	Approx. Stranded Dia.	Siemem Martin Grade	High Strength Grade	Extra-high Strength Grade	Approx. Weight
No./mm	mm	kN	kN	kN	kg/km	No./mm	mm	kN	kN	kN	kg/km
3/2.64	5.56	10.409	15.569	21.796	131	7/3.05	9.52	30.915	48.04	68.503	407
3/3.05	6.35	13.523	21.04	29.981	174	7/3.68	11.11	41.591	64.499	92.523	594
3/3.05	6.35	-	-	-	174	7/4.19	12.7	53.823	83.627	119.657	768
3/3.30	7.14	15.035	23.398	33.362	204	7/4.78	14.29	69.837	108.981	155.688	991
3/3.68	7.94	18.193	28.246	40.479	256	7/5.26	15.88	84.961	131.667	188.605	1211
3/4.19	9.52	24.732	37.187	52.489	328	19/2.54	12.7	56.492	84.961	118.768	751
7/1.04	3.18	4.048	5.916	8.14	49	19/2.87	12.49	71.616	107.202	149.905	948
7/1.32	3.97	6.539	9.519	13.078	76	19/3.18	15.88	80.513	124.995	178.819	1184
7/1.57	4.76	8.452	12.677	17.748	108	19/3.81	19.05	116.543	181.487	259.331	1719
7/1.65	4.76	-	-	-	118	19/4.50	22.22	159.691	248.211	354.523	2352
7/1.83	5.56	11.387	17.126	24.02	145	19/5.08	25.4	209.066	325.61	464.839	2384
7/2.03	6.35	14.012	21.129	29.581	181	37/3.63	25.4	205.508	319.827	456.832	3061
7/2.36	7.14	18.905	28.469	39.812	243	37/4.09	28.58	262	407.457	581.827	4006
7/2.64	7.94	23.798	35.586	49.82	305	37/4.55	31.75	324.72	505.318	721.502	4833

(2) BS 183 Standard

No./Dia. of Wires	Approx. Stranded Dia.	Minimum Break Load of Stranding Wires							Approx Weight	No./Dia. of Wires	Approx. Stranded Dia.	Minimum Break Load of Stranding Wires							Approx. Weight
No./Dia. of Wires	Approx. Stranded Dia.	Grade 350	Grade 480	Grade 700	Grade 850	Grade 1000	Grade 1150	Grade 1300	Approx Weight	No./Dia. of Wires	Approx. Stranded Dia.	Grade 350	Grade 480	Grade 700	Grade 850	Grade 1000	Grade 1150	Grade 1300	Approx. Weight
No./mm	mm	kN	kN	kN	kN	kN	kN	kN	kg/km	No./mm	mm	kN	kN	kN	kN	kN	kN	kN	kg/km
3/1.80	3.9	2.65	3.66	-	-	-	-	-	60	7/2.00	6.0	7.70	10.55	15.40	-	22.00	25.30	28.60	170
3/2.65	5.7	5.80	7.95	-	-	-	-	-	130	7/2.36	7.1	10.70	14.70	21.40	-	30.60	35.20	39.80	240
3/3.25	7.0	8.70	11.95	-	-	-	-	-	195	7/2.65	8.0	13.50	18.50	27.00	-	38.60	44.40	50.20	300
3/4.00	8.6	13.20	18.10	-	-	-	-	-	295	7/3.00	9.0	17.30	23.75	34.65	-	49.50	56.90	64.30	392
4/1.80	4.4	3.55	4.90	-	-	-	-	-	80	7/3.15	9.5	19.10	26.20	38.20	-	54.55	62.75	70.90	430
4/2.65	6.4	7.70	10.60	-	-	-	-	-	172	7/3.25	9.8	20.30	27.85	40.65	-	58.05	66.80	75.50	460
4/3.25	7.9	11.60	15.90	-	-	-	-	-	260	7/3.65	11.0	25.60	35.15	51.25	-	73.25	84.20	95.20	570
4/4.00	9.7	17.60	24.10	35.20	-	-	-	-	390	7/4.00	12.0	30.90	42.20	61.60	-	88.00	101.0	114.0	690
5/1.50	4.1	3.10	4.24	6.18	-	-	-	-	69	7/4.25	12.8	34.75	47.65	69.50	-	99.30	114.0	129.0	780
5/1.80	4.9	4.45	6.10	8.90	-	-	-	-	95	7/4.75	14.0	43.40	59.45	86.80	-	124.0	142.7	161.3	970
5/2.65	7.2	9.65	13.25	19.30	-	-	-	-	220	19/1.0	5.0	5.22	7.16	10.45	-	14.92	17.16	19.40	120
5/3.25	8.8	14.50	19.90	29.00	-	-	-	-	320	19/1.25	6.3	8.16	11.19	16.32	-	23.32	26.81	30.31	180
5/4.00	10.8	22.00	30.15	43.95	-	-	-	-	490	19/1.40	7.0	10.24	14.04	20.47	-	29.25	33.64	38.02	230
7/0.56	1.7	0.60	0.83	1.20	-	1.70	1.98	2.24	14	19/1.6	8.0	13.37	18.35	26.75	-	38.20	43.93	49.66	300
7/0.71	2.1	0.97	1.33	1.94	-	2.75	3.19	3.60	28	19/2.0	10.0	20.90	28.65	41.78	50.74	59.69	68.64	77.60	470
7/0.85	2.6	1.39	1.90	2.80	-	3.95	4.57	5.15	31	19/2.5	12.5	32.65	44.80	65.29	79.28	93.27	107.3	121.3	730
7/0.90	2.7	1.55	2.14	3.10	-	4.45	5.12	5.80	35	19/3.0	15.0	47.00	64.50	94.00	114.1	134.3	154.5	174.6	1050
7/1.00	3.0	1.92	2.64	3.85	-	5.50	6.32	7.15	43	19/3.55	17.8	65.80	90.27	131.6	159.9	188.0	216.3	244.5	1470
7/1.25	3.8	3.01	4.10	6.00	-	8.55	9.88	11.15	67	19/4.0	20.0	83.55	114.6	167.1	203.0	238.7	274.6	310.4	1870
7/1.40	4.2	3.75	5.17	7.54	9.16	10.75	12.35	14.00	84	19/4.75	23.8	117.85	161.6	235.7	286.0	336.7	387.2	437.7	2630
7RS*	4.3	3.85	5.28	7.70	9.35	11.00	12.65	14.30	86
7/1.60	4.8	4.90	6.75	9.85	11.95	14.10	16.20	18.30	110
7/1.80	5.4	6.23	8.55	12.45	-	17.80	20.50	23.20	140

Galanized Wires

About us

Custom cable maker

We have alarms on extruding insulation andjacket, to keep 100% quality.

Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.

No. of R&D Staff: 38

No. of Production Lines:Above 10

Number of Foreign Trading Staff:7

130

130 technical staff

The company has 3 factories

Our workshops and certifications

High temperature wire & cable manufacturers

Suke electrical copper wire manufacturers factory

Electrical copper wire manufacturers

Custom wire and cable manufacturer in China

Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.

Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.

FAQ

What is building wire?

Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.

Conductor Structure of Power Cable

1. Conductors comply with IEC, AS/NZS and BSI standard requirements

2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.

3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
