Product Description

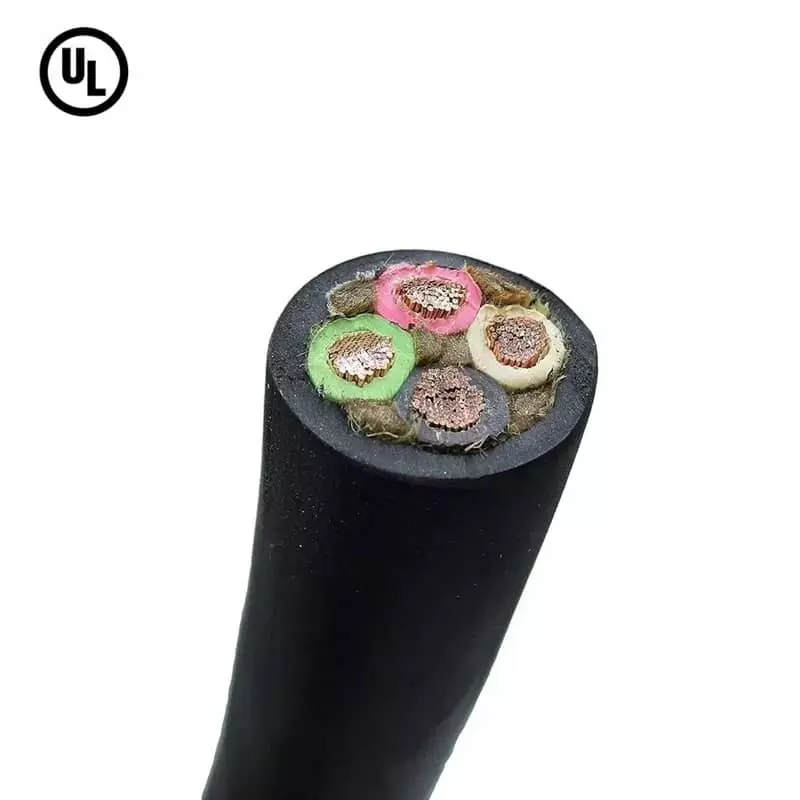

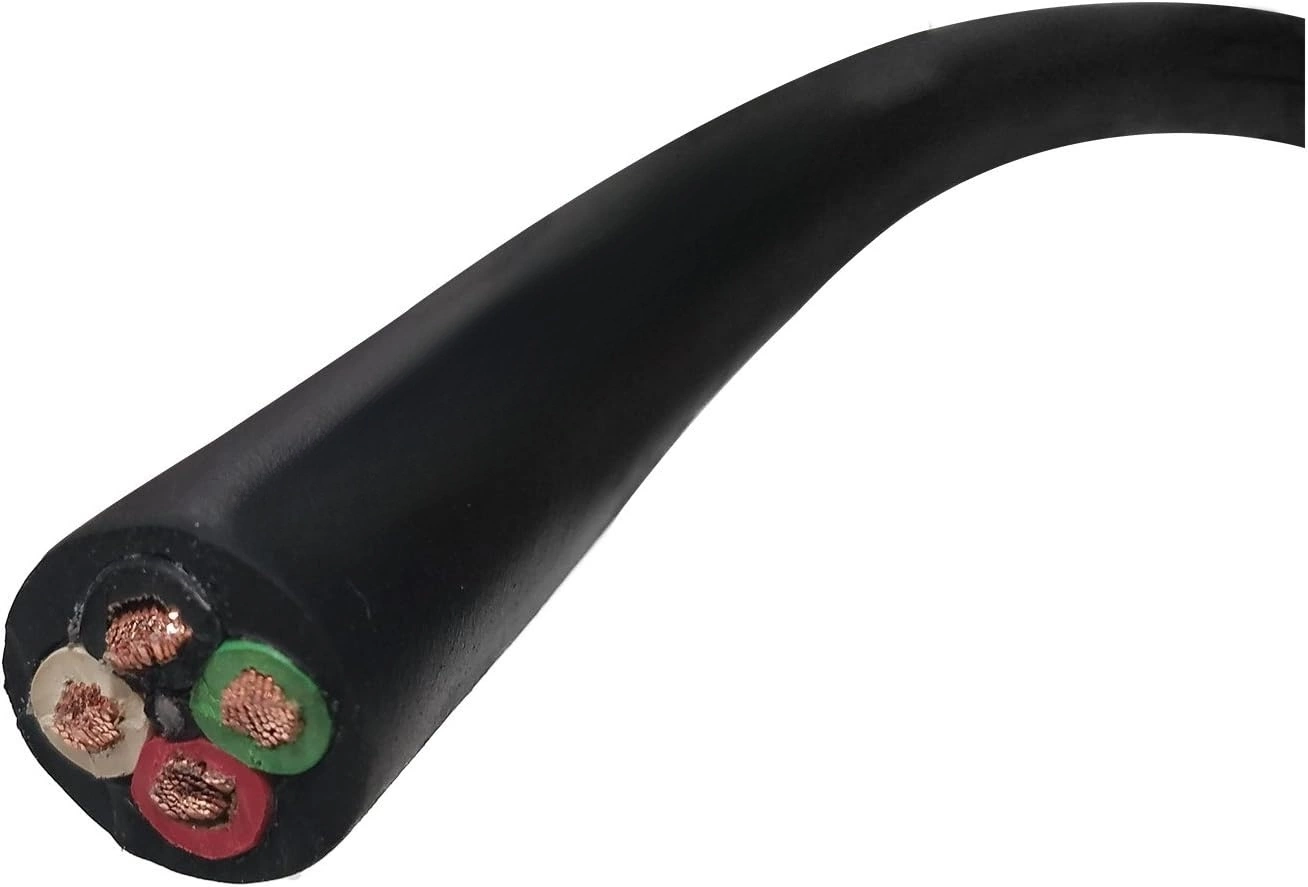

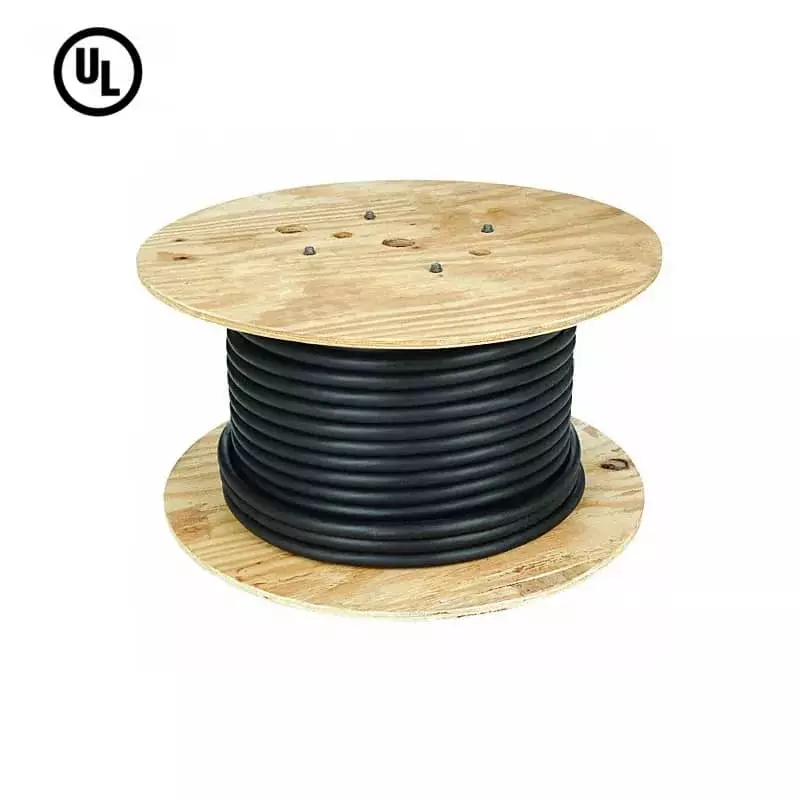

Multi-Conductor Type SOOW, 600 Volt, UL /CUL Portable Cable 18AWG - 10AWG
Application:
TYPE SOOW Cable is for use in heavy-duty industrial applications where flexibility and durability is required. SOOW is designed for extra hard usage on industrial equipment, heavy tools, motor and welding leads, power extensions, portable machinery, sound equipment, portable stage lights, marine dockside power and mining applications. Constructed of color-coded synthetic oil, ozone and water resistant rubber (EPDM) insulation and an oil resistant thermoset chlorinated polyethylene (CPE) jacket, SOOW is rated for indoor/outdoor use.
SOOW flexible rubber cords carry a 600 volt rating. They are also manufactured as a 300 volt rated Junior Service cord designated as SJOOW. Using the key, a SJOOW cord is a 300 volt (junior service) elastomer plastic oil resistant inner and outer jacket portable cord.
Specific Applications:
Portable tools
Industrial and processing equipment
Construction equipment
Cranes and hoists
Track systems
Battery chargers
Portable appliances
Small motors and associated machinery
Electrical equipment exposed to oils, solvents, flame, or moisture
Standards and References：
Type SOOW Cords/Cable meets or exceeds the applicable requirements of the following standards and specifications:
UL Standard 62 for Flexible Cords
CSA Standard 22.2 No. 49 for Flexible Cords
MSHA flame resistance for mining applications
NEC Article 400
RoHS Compliant
SOOW offers:
• Excellent resistance to oils, acids, chemicals, water, ozone, extreme
temperatures, cuts, tears and abrasion
• Sunlight resistant
• Flame retardant
• Indoor/outdoor rated
• Highly flexible
• Maximum continuous conductor temperature: 90°C DRY

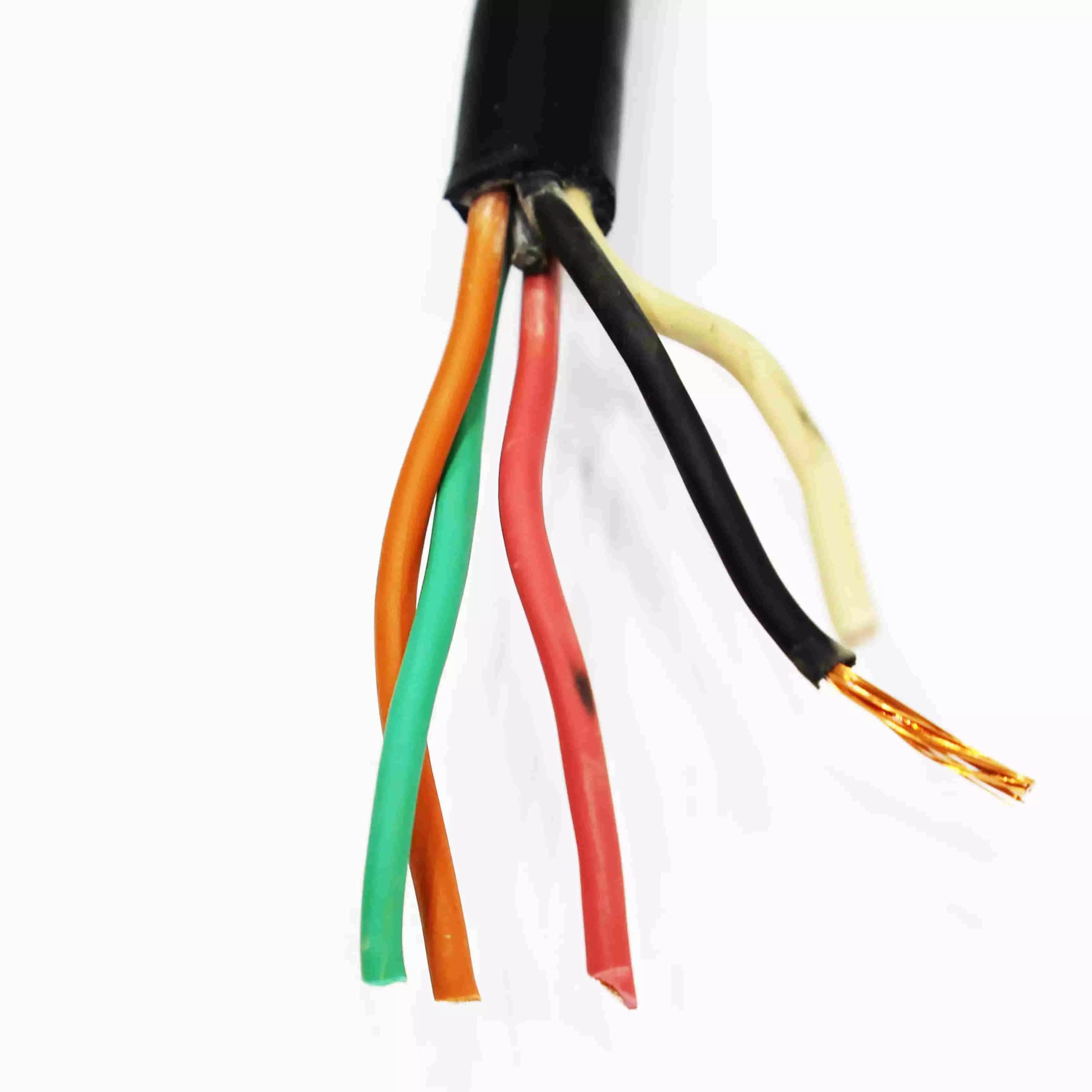

Construction:
Conductors: Bare, annealed copper per ASTM B-3 Flexible, bunch-stranded per UL-62
Separator: A paper tape is applied between the conductor and insulation to facilitate stripping.
Insulation: Color coded synthetic rubber (EPDM) oil and water resistant per UL-62
Jacket: Black Chlorinated Polyethylene (CPE)
Cabling: Conductors are assembled round with fillers as needed.
Temperature Range: -40°C to +90°C
Voltage Rating: 600 Volts for SOOW,300 Volts for SJOOW
Specification:
|
Conductor
Size
(AWG)
|
Conductor
Stranding
|
Nominal
Insulation
Thickness
|
Nominal
Jacket
Thickness
|
Nominal
Overall
Diameter
(in)
|
Weight
|
Ampacity
|
|
n
|
/
|
AWG/inch
|
mil
|
mil
|
in
|
lbs/1000ft
|
A
|
|
2*18AWG
|
16
|
/
|
30
|
30
|
60
|
0.33
|
70
|
10
|
|
3*18AWG
|
16
|
/
|
30
|
30
|
60
|
0.35
|
80
|
10
|
|
4*18AWG
|
16
|
/
|
30
|
30
|
60
|
0.37
|
96
|
7
|
|
2*16AWG
|
26
|
/
|
30
|
30
|
60
|
0.36
|
86
|
13
|
|
3*16AWG
|
26
|
/
|
30
|
30
|
60
|
0.37
|
99
|
13
|
|
4*16AWG
|
26
|
/
|
30
|
30
|
60
|
0.41
|
119
|
10
|
|
2*14AWG
|
41
|
/
|
30
|
45
|
80
|
0.49
|
155
|
18
|
|
3*14AWG
|
41
|
/
|
30
|
45
|
80
|
0.51
|
179
|
18
|
|
4*14AWG
|
41
|
/
|
30
|
45
|
80
|
0.56
|
215
|
15
|
|
2*12AWG
|
65
|
/
|
30
|
45
|
95
|
0.56
|
206
|
25
|
|
3*12AWG
|
65
|
/
|
30
|
45
|
95
|
0.58
|
239
|
25
|
|
4*12AWG
|
65
|
/
|
30
|
45
|
95
|
0.63
|
290
|
20
|
|
2*10AWG
|
104
|
/
|
30
|
45
|
95
|
0.62
|
266
|
30
|
|
3*10AWG
|
104
|
/
|
30
|
45
|
95
|
0.66
|
316
|
30
|
|
4*10AWG
|
104
|
/
|
30
|
45
|
95
|
0.72
|
385
|
25
|
|
3*8AWG
|
133
|
/
|
29
|
60
|
110
|
0.83
|
505
|
40
|
|
4*8AWG
|
133
|
/
|
29
|
60
|
125
|
0.93
|
646
|
35
|
|
5*8AWG
|
133
|
/
|
29
|
60
|
125
|
0.93
|
684
|
35
|
|
3*6AWG
|
133
|
/
|
27
|
60
|
125
|
0.95
|
694
|
55
|
|
4*6AWG
|
133
|
/
|
27
|
60
|
140
|
1.07
|
885
|
45
|
|
5*6AWG
|
133
|
/
|
27
|
60
|
140
|
1.07
|
946
|
45
|
|
3*4AWG
|
133
|
/
|
0.0177
|
60
|
140
|
1.09
|
952
|
70
|
|
4*4AWG
|
133
|
/
|
0.0177
|
60
|
155
|
1.22
|
1210
|
60
|
|
5*4AWG
|
133
|
/
|
0.0177
|
60
|
155
|
1.22
|
1304
|
60
|
|
3*2AWG
|
133
|
/
|
0.0223
|
60
|
155
|
1.26
|
1344
|
95
|
|
4*2AWG
|
133
|
/
|
0.0223
|
60
|
170
|
1.41
|
1705
|
80
|
|
5*2AWG
|
133
|
/
|
0.0223
|
60
|
170
|
1.41
|
1853
|
80
|
We have alarms on extruding insulation andjacket, to keep 100% quality.
Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.
10
No. of Production Lines:Above 10
7
Number of Foreign Trading Staff:7
3
The company has 3 factories

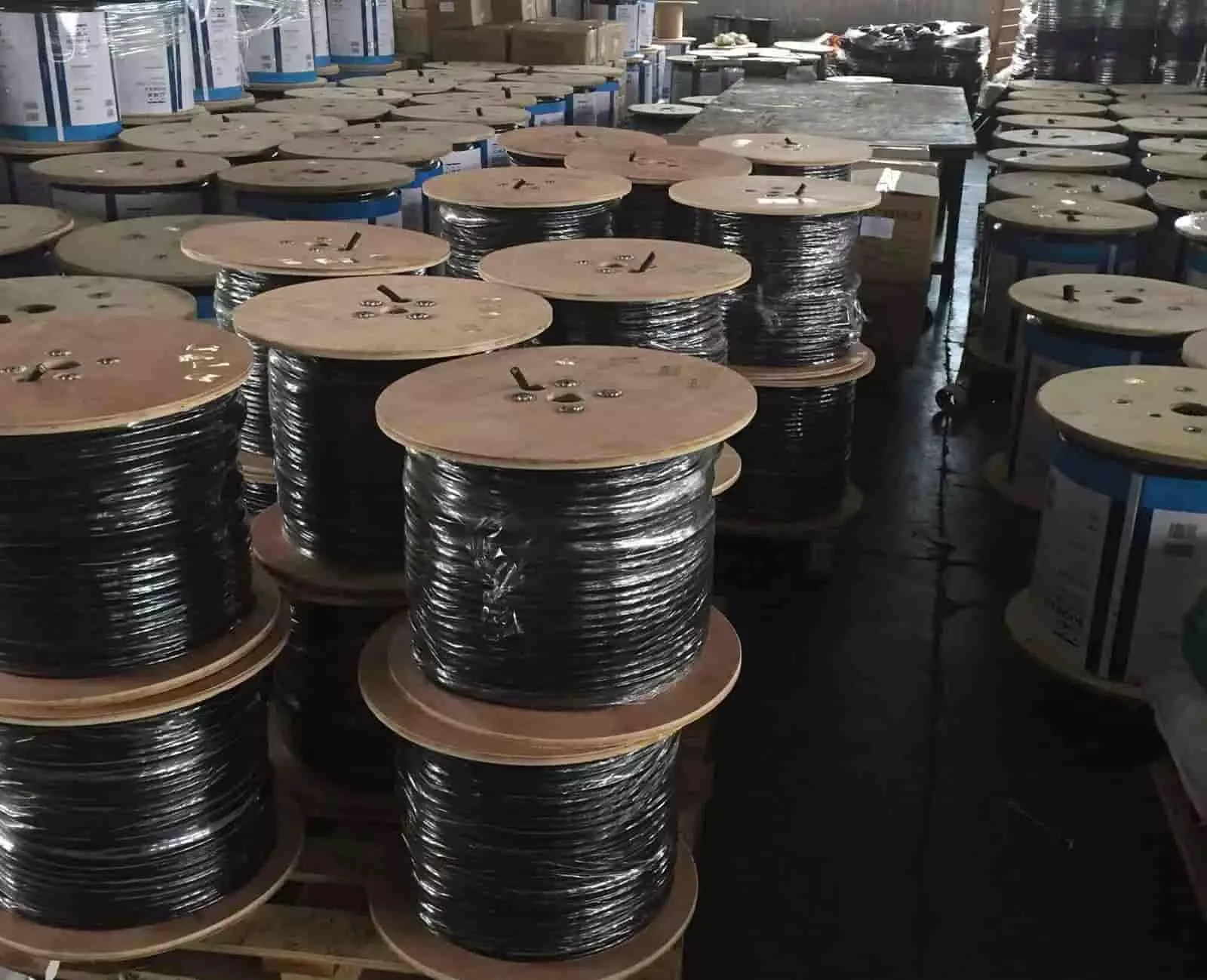

Our workshops and certifications
