UL Approved High-quality Solar AC Cable Manufacturing Trader Suke

Executive Standard:

PV cable(solar cable) refers to original draft made out by PV system cable work team of German Standard Committee(Technical Specification 2PFG1169/08.2007 in Rhein TUV company German).

No-haogen PV-Cable Type:

PV1-F: Tinned Flexible Copper Wire No Halogen PO Insulation&Sheath Photovoltaic System Cable.

Application:

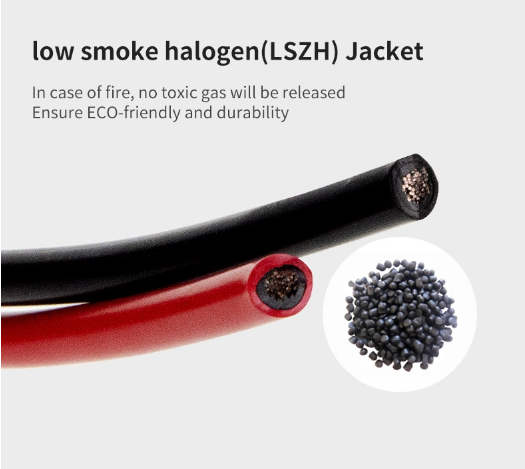

Applied to solar panels for power generation and related components of the wiring, and connection, particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.

Cable Characteristics:

MODEL	PV1-F
Conductor	Tinned copper wire,class 5 (as per IEC 60228)
Insulation	No Halogen PO insulation
Sheath	No Halogen PO sheath
rated voltage	AC 0.6/1KV
	DC 1.8KV
Temperature range	-40°C~+90°C,dry/ humidity
Max.working temperature of conductor	120°C
During short circuit	200°C
Standard	EN 2PFG 1169

Conductor Material

Solar AC Cable

Solar AC Cable Wholesale

About us

Suke Cable Manufacturing

We have alarms on extruding insulation andjacket, to keep 100% quality.

Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.

No. of R&D Staff: 38

No. of Production Lines:Above 10

Number of Foreign Trading Staff:7

130

130 technical staff

The company has 3 factories

Our workshops and certifications

Suke Insulaion Flexible Wire Cable Manufacturing

OEM ODM Wire Cable Machine Of Workshop

Copper Heat-Resistant Wire Cable Production Workshop

Inspection Workshop Of Cable Factory

Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.

Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.

FAQ

What is building wire?

Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.

Conductor Structure of Power Cable

1. Conductors comply with IEC, AS/NZS and BSI standard requirements

2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.

3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
