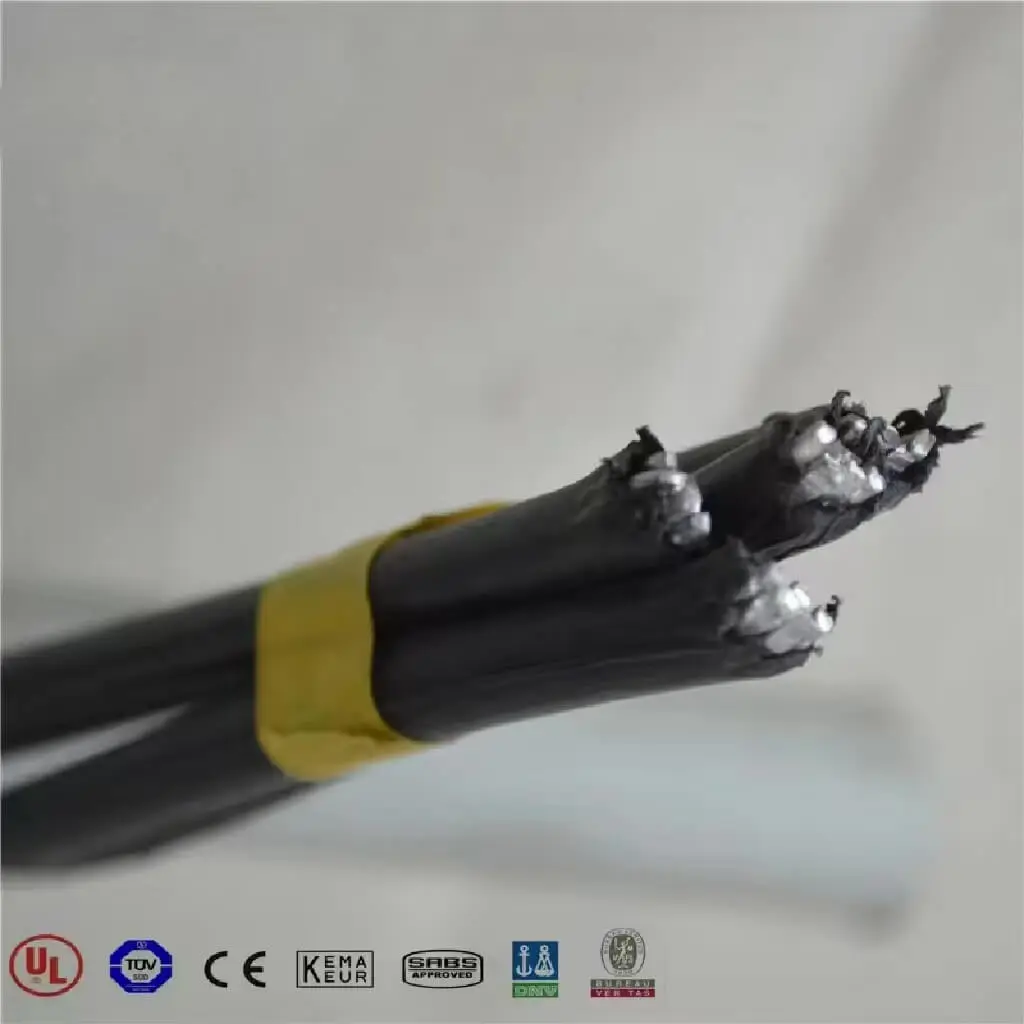

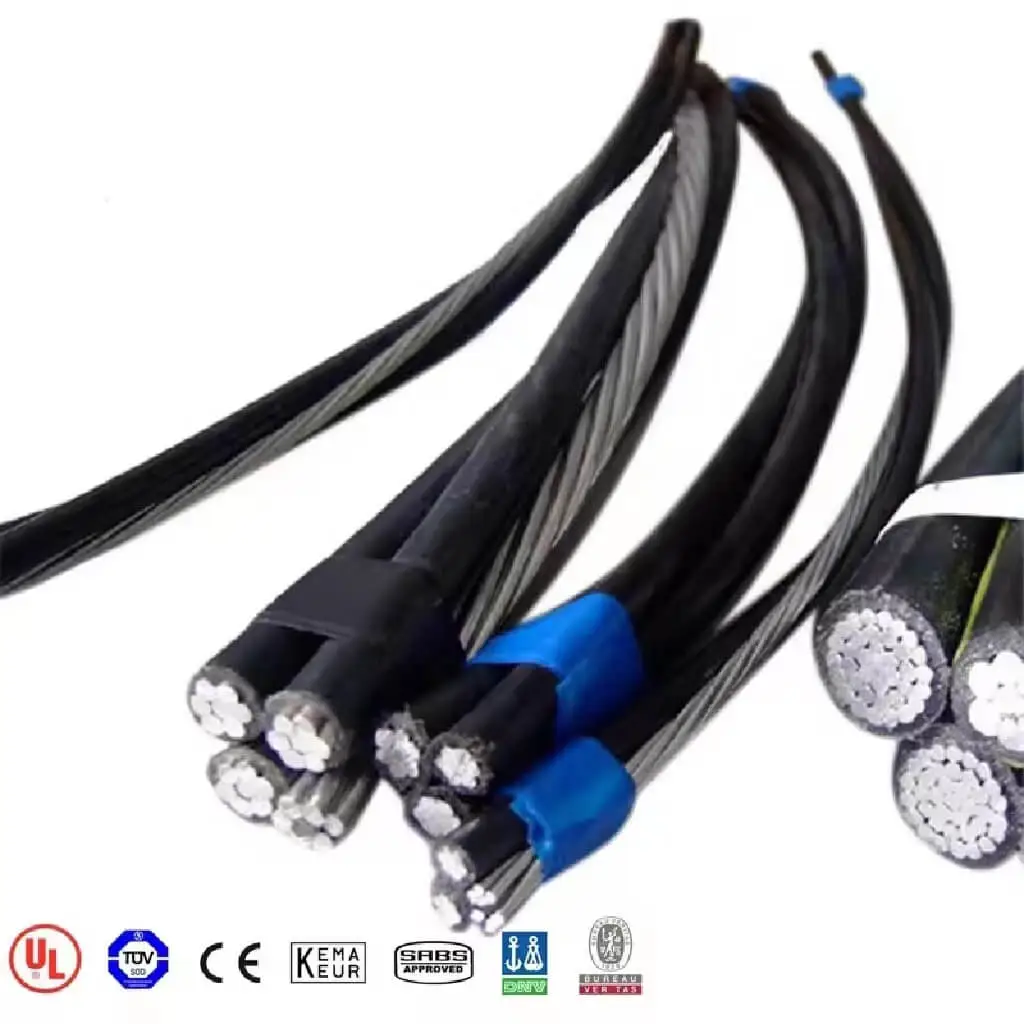

Aluminium Service Drop
Aluminium Conductors. Polyethylene or Cross-linked Polyethylene Insulation.
Construction
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or cross-linked polyethylene. Neutral messengers are concentrically stranded 6201, AAC, or ACSR.One conductor is manufactured with an extruded ridge for phase identification.
Standards
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric- Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Quadruplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.
Certification
ISO, CCC, CE, RoHS, VDE and so on
Using Properties
1. Rated Voltage:0.6/1kV
2. Cable installation temperature not less than -20°C
3. Max. temperature of cable at short circuit(The max. duration does not exceed 5 minutes)
For XLPE insulation is 250°C.
For HDPE insulation is 150°C.
4. The Max. bending radius of cable shall not be less than 20Dmm(D overall diameter of cable)
Types
1. Duplex Service Drop:To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 maximum.
2.Triplex Service Drop: To supply power from the utility`s lines to the consumer`s overhead. For service at 600 volts or less(phase to phase) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .
3. Quadruplex Service Drop: Used to supply 3 phase power, usually from a pole-mounted transformer to the use`s service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.
Applications
Used to supply 3 phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductors or 90℃ for cross-linked polyethylene (XLPE) insulated conductors.
Duplex Service Drop
|
Code* Word
|
Phase Conductor
|
Bare Neutral Messenger
|
Weight
per 1000 ft. (lbs.)
|
Allowable
Ampacities+
|
|
Size
(AWG)
|
Stranding
|
Insul.
Thick.
(mils)
|
Size
(AWG)
|
Stranding
|
Rated
Strength
(lbs.)
|
XLP
|
POLY
|
XLP
|
POLY
|
|
ACSR NEUTRAL-MESSENGER
|
|
Setter
|
6
|
1
|
45
|
6
|
6/1
|
1190
|
72
|
72
|
85
|
70
|
|
Shepherd
|
6
|
7
|
45
|
6
|
6/1
|
1190
|
75
|
75
|
85
|
70
|
|
Eskimo
|
4
|
1
|
45
|
4
|
6/1
|
1860
|
110
|
110
|
115
|
90
|
|
Terrier
|
4
|
7
|
45
|
4
|
6/1
|
1860
|
115
|
115
|
115
|
90
|
|
Chow
|
2
|
7
|
45
|
2
|
6/1
|
2850
|
176
|
176
|
150
|
120
|
|
Bull
|
1/0
|
9
|
60
|
1/0
|
6/1
|
4380
|
280
|
280
|
205
|
160
|
|
* Code words for XLPE insulated products are formed by adding "/XLPE" to the conventional code words above (e.g.-Chihuahua/XLP).
|
|
+ Conductor temperature of 90℃ for XLPE, 75℃ for Poly; ambient temperature of 40℃; emissivity 0.9; 2 ft./sec. wind in sun.
|
Triplex Service Drop
|
Code* Word
|
Phase Conductor
|
Bare Neutral Messenger
|
Weight
per 1000 ft. (lbs.)
|
Allowable
Ampacities+
|
|
Size
(AWG)
|
Strand
-ing
|
Insul.
Thick.
(mils)
|
Equiv. Dia.
(AWG)++
|
Size++
(kcmil)
|
Stranding
|
Rated
Strength
(lbs.)
|
XLP
|
POLY
|
XLP
|
POLY
|
|
6201 ALLOY NEUTRAL-MESSENGER
|
|
Minex
|
6
|
1
|
45
|
6
|
30.58
|
7
|
1110
|
101
|
101
|
85
|
70
|
|
Hippa
|
6
|
7
|
45
|
6
|
30.58
|
7
|
1110
|
107
|
107
|
85
|
70
|
|
Prawn
|
4
|
1
|
45
|
4
|
48.69
|
7
|
1760
|
152
|
152
|
115
|
90
|
|
Bamacle
|
4
|
7
|
45
|
4
|
48.69
|
7
|
1760
|
160
|
160
|
115
|
90
|
|
Shrimp
|
2
|
7
|
45
|
2
|
77.47
|
7
|
2800
|
243
|
243
|
150
|
120
|
|
Gammarus
|
1/0
|
7
|
60
|
1/0
|
123.3
|
7
|
4460
|
390
|
390
|
205
|
160
|
|
Leda
|
1/0
|
9
|
60
|
1/0
|
123.3
|
7
|
4460
|
384
|
384
|
205
|
160
|
|
Dungenese
|
2/0
|
7
|
60
|
2/0
|
155.4
|
7
|
5390
|
483
|
483
|
235
|
185
|
|
Cyclops
|
2/0
|
11
|
60
|
2/0
|
155.4
|
7
|
5390
|
474
|
474
|
235
|
185
|
|
Flustra
|
3/0
|
17
|
60
|
3/0
|
195.7
|
7
|
6790
|
587
|
587
|
275
|
215
|
|
Lepas
|
4/0
|
18
|
60
|
4/0
|
246.9
|
7
|
8560
|
728
|
728
|
315
|
245
|
.
|
Code* Word
|
Phase Conductor
|
Bare Neutral Messenger
|
Weight
per 1000 ft. (lbs.)
|
Allowable
Ampacities+
|
|
Size
(AWG or kcmil)
|
Stranding
|
Insul.
Thick.
(mils)
|
Size
(AWG or kcmil)
|
Stranding
|
Rated
Strength
(lbs.)
|
XLP
|
POLY
|
XLP
|
POLY
|
|
AAC NEUTRAL-MESSENGER
|
|
Clydesdale
|
4
|
1
|
45
|
4
|
7
|
881
|
198
|
198
|
100
|
80
|
|
Pinto
|
4
|
7
|
45
|
4
|
7
|
881
|
211
|
211
|
100
|
80
|
|
Mustang
|
2
|
7
|
45
|
2
|
7
|
1350
|
318
|
318
|
135
|
105
|
|
Criollo
|
1/0
|
7
|
60
|
1/0
|
7
|
1990
|
503
|
503
|
180
|
140
|
|
Percheron
|
1/0
|
9
|
60
|
2/0
|
7
|
2510
|
619
|
619
|
205
|
160
|
|
Hanovarian
|
3/0
|
17
|
60
|
3/0
|
19
|
3310
|
764
|
764
|
235
|
185
|
|
Oldenburg
|
4/0
|
18
|
60
|
4/0
|
19
|
4020
|
945
|
945
|
275
|
210
|
|
Lippizaner
|
336.4
|
19
|
80
|
336.4
|
19
|
6146
|
1519
|
1519
|
370
|
280
|
