Multi-Conductor Trailing/Reeling Neoprene, CPE, EPR, Rubber Cable for Mining/Crane/Mobile Equipment
1. Voltage: 300/500V, 450/750V, 0.6/1kv, 6/10kv.
2. Conductor: Flexible copper/Tinned copper
3. Insulation: Vulcanized Rubber/Rubber/EPR/Silicone Rubber/Neoprene or other.
4. Color of insulation: Red, Yellow, Green, Light blue, White, Black, Grey, Brown, Orange, Violet, Yellow/Grey
5. Nominal cross section area: 1.5~240mm2
6. Cores: 1-37 Core
7. Type: flat and round
8. International Standard: VDE, IEC, BS or according to your requirement.
PUR-HF Low Voltage Chain Festoon Cable
Voltage Rating (Uo/U): 0.6/1kV
Conductor: Class 5 flexible tinned copper
Insulation: HF (Halogen Free) compound based on polyester
Outer Sheath:
PUR HFFR (Polyurethane - Halogen Free, Flame Retardant)
Temperature Rating:
Fixed installation: -50°C to +80°C
Mobile operation: -40°C to +80°C
Cores: 3,4,5
Section area: 1.5mm2-185mm2
Application: For use as energy and control cable in festoon systems and as a chain cable. Also suitable as drum reeling cable under moderate mechanical stresses, torsion, tension and torque.
PUR Spreader LV Reeling Cable
Voltage Rating (Uo/U): 0.6/1kV
Conductor: Class 5 flexible tinned copper
Insulation: Halogen free compound based on polyester
Lay Up: Central Aramid strength member, cores in concentric layers
Inner and Outer Sheath: PUR-HF (Halogen Free, flame retardant Polyurethane)
Braiding: Anti-twisting element - Aramid yarns braiding
Sheath Colour: Black, Yellow or Orange.
Reeling Application: Up to 240m/min horiz. / Up to 180m/min vertica
Application: Vertical reeling cable under high mechanical stresses, torsion, tension and torque. Mainly used for spreader reeling applications. Strength member to increase tensile load, acceleration and speed

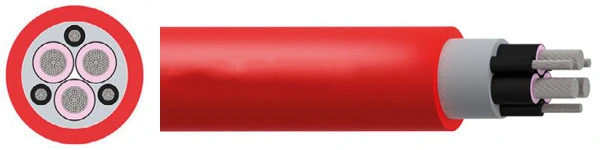

Medium Voltage Material Handling Equipment (N)TSCGEWÖU Cable
Voltage Rating (Uo/U):
3.6/6kV; 6/10kV, 8.7/15kV, 12/20kV.
Phase/Earth Conductor:
Class 5 flexible tinned copper/Copper
Insulation: Rubber compound
Inner Sheath: Rubber compound
Section area: 25-185mm2
Cores: 3+3
Maximum Short Circuit Temperature: 250°C
Mobile Condition: +25°C to + 80°C
Static Condition: +40°C to + 80°C
Application: Flexible cable for fixed distribution lines in mines and alongside material handling equipment. Suitable for indoor and outdoor applications
|
Model
|
Name
|
Main applications
|
Working temperature of core ≤0C
|
|
60245-81(YH)
|
Natural Rubber Sheath for Welding Cable
|
Always used indoor
|
65
|
|
60245-82(YHF)
|
Neoprene Rubber Sheath Welding Cable
|
Always used outdoor
|
65
|
We have alarms on extruding insulation andjacket, to keep 100% quality.
Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.
10
No. of Production Lines:Above 10
7
Number of Foreign Trading Staff:7
3
The company has 3 factories
Our workshops and certifications
Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.
Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.
Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.
How do I know if a cable is compliant with standards?
Look for certification marks or labels on the cable, such as those from IEC, UL, or other relevant regulatory bodies that indicate compliance with safety and performance standards.
What are armoured cables?
Armoured cables have an additional layer of protection (usually metal) to prevent physical damage. They are often used in harsh environments or where cables may be exposed to impact.
Conductor Structure of Power Cable
1. Conductors comply with IEC, AS/NZS and BSI standard requirements
2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.
3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
