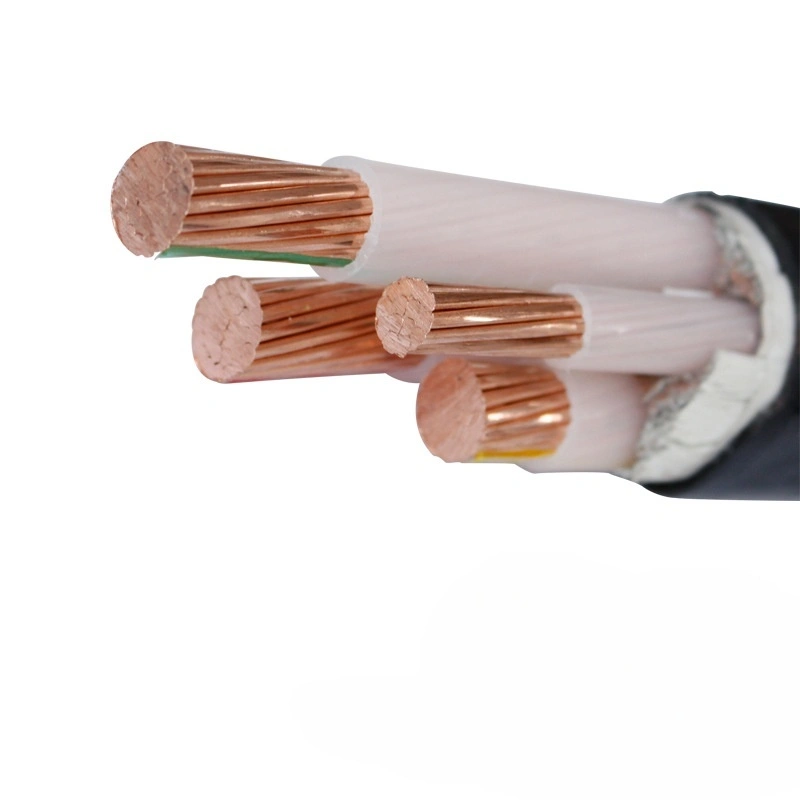

Distributors Low voltage Pure Cooper Wire 3×150mm2 XLPE 0.6/1KV Armoured Power Suke Cable®

Conductors

Conductors shall be of Copper or Aluminium, circular standed(Non-compacted or Compacted) or Shaped, Class 1 or Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid circular conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Insulation

XLPE material and thickness shall be as per IEC 60502-1 or BS 5467 rated for 90° C continuous operation.

PVC material and thickness shall be as per IEC 60502-1 or BS 6346. PVC insulation Material-PVC/A as per IEC 60502 or TI1 as per BS EN 50363.

PVC insulation as per SASO 1694 rated for 85°C continuous operation is also available on request.

Assembly

Two, Three Four or Five insulated conductors are laid-up together with non-hygroscopic fillers compatible with the insulation material.

Inner sheath

The assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted if the outer shape of the cable remains practically circular.

Armour

Galvanized Steel Wires applied helically over the bedding as per IEC 60502-1 or as per BS 5467, BS 6346. (Single core cables shall be Aluminium wire armoured)(SWA/AWA)
Double Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502-1.(STA)

Outer Sheath

Outer sheath will be extruded PVC/ST2 as per IEC 60502-1, Type 9 as per BS 7655. Special type of PVC sheathing material such as fire retardant PVC, anti-termite and anti-rodent PVC, ultraviolet PVC, Oil resistant PVC, etc. Are available on request also other special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE etc are available.

Flame Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

Standard:
IEC,BS,VDE,AS/NZS,ICEA,JIS and so on,designing and manufacturing special power cable according to the other standards required by the customer

Type and Name:

We have alarms on extruding insulation andjacket, to keep 100% quality.

Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.

Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.

Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.
