Product Description

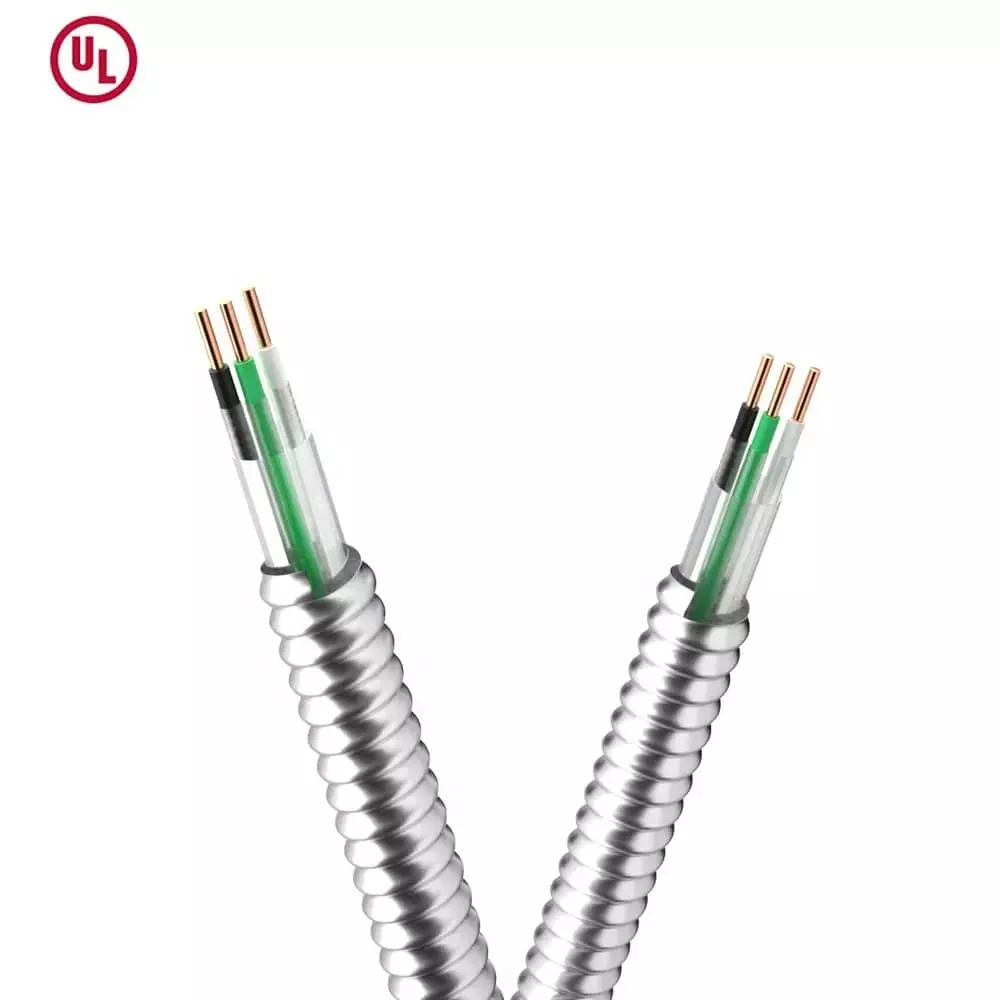

MC Cable with THHN Ground UL certificate
1. Application:
THHN wire is meant for use as general purpose wiring for installation in conduit or other recognized raceway. THHN may also be used for machine tool, appliance and control circuit wiring
2. Construction:
1. Conductor: Highly conductive copper or AA-8000 aluminum
2. Insulation: Color-coded, heat and moisture resistant PVC
3. Jacket: Transparent self-lubricated nylon
3. Features:
VW-1 flame rating
THHN wire is often dual rated: 90ºC dry and 75ºC wet
Oil resistant: 75ºC for 60d
Furthermore, resistant to acid, abrasion, alkalis, gas, and UV
4. Standard:
Conductor: It's available for both of American Wire Gauge and Philippine National Code
(UL83, ASTM B3, ASTM B8, ASTM B801, PEC)
Insulation: UL83
Jacket: UL83
5. Color:
To costumer request
6. Technical Specification Data
|
Part
No.
|
Conductor
|
Insulation
|
Jacket
|
Max
dia-
meter
(mm)
|
Ref.WT
(kg/km)
|
|
|
Size
(AWG)
|
Construction
(No./mm)
|
Diameter
(mm)
|
Nominal
Thickness
(mm)
|
Nominal
Diameter
(mm)
|
Minimum Thickness
At any point
(mm)
|
Nominal
Diameter
(mm)
|
|
THHN-14B
|
|
14
|
7/0.62
|
1.86
|
0.38
|
2.66
|
0.10
|
2.90
|
3.3
|
25
|
|
THHN-14B1
|
14
|
19/0.38
|
1.90
|
0.38
|
2.70
|
0.10
|
2.94
|
3.4
|
25
|
|
THHN-12B
|
12
|
7/0.78
|
2.34
|
0.38
|
3.14
|
0.10
|
3.38
|
3.8
|
38
|
|
THHN-12B1
|
12
|
19/0.47
|
2.35
|
0.38
|
3.15
|
0.10
|
3.39
|
3.8
|
38
|
|
THHN-10B
|
10
|
7/0.98
|
2.94
|
0.51
|
4.00
|
0.10
|
4.24
|
4.8
|
59
|
|
THHN-10B1
|
10
|
19/0.60
|
3.00
|
0.51
|
4.06
|
0.10
|
4.30
|
4.8
|
59
|
|
THHN-8B
|
8
|
7/1.23
|
3.69
|
0.76
|
5.25
|
0.13
|
5.55
|
6.2
|
97
|
|
THHN-8B1
|
8
|
19/0.75
|
3.75
|
0.76
|
5.31
|
0.13
|
5.61
|
6.3
|
96
|
|
THHN-6B
|
6
|
7/1.56
|
4.68
|
0.76
|
6.24
|
0.13
|
6.54
|
7.3
|
147
|
|
THHN-6B1
|
6
|
19/0.95
|
4.77
|
0.76
|
6.33
|
0.13
|
6.63
|
7.4
|
146
|
|
THHN-4B
|
4
|
7/1.96
|
5.88
|
0.76
|
7.44
|
0.13
|
7.74
|
8.7
|
135
|
|
THHN-4B1
|
4
|
19/1.19
|
5.95
|
0.76
|
7.51
|
0.13
|
7.81
|
8.7
|
135
|
|
THHN-3B
|
3
|
7/2.20
|
6.60
|
1.02
|
8.68
|
0.15
|
9.02
|
10.0
|
292
|
|
THHN-3B1
|
3
|
19/1.33
|
6.65
|
1.02
|
8.73
|
0.15
|
9.07
|
10.0
|
291
|
|
THHN-2B
|
2
|
7/2.47
|
7.41
|
1.02
|
9.49
|
0.15
|
9.83
|
11.0
|
361
|
|
THHN-2B1
|
2
|
19/1.50
|
7.50
|
1.02
|
9.58
|
0.15
|
9.92
|
11.0
|
361
|
|
THHN-1B
|
1
|
19/1.68
|
8.40
|
1.02
|
10.48
|
0.18
|
10.88
|
12.1
|
457
|
|
THHN-1/0B
|
1/0
|
19/1.89
|
9.45
|
1.27
|
12.03
|
0.18
|
12.43
|
13.8
|
585
|
|
THHN-2/0B
|
2/0
|
19/2.12
|
10.60
|
1.27
|
13.18
|
0.18
|
13.58
|
15.1
|
724
|
|
THHN-3/0B
|
3/0
|
19/2.38
|
11.90
|
1.27
|
14.48
|
0.18
|
14.88
|
16.5
|
900
|
|
THHN-4/0B
|
4/0
|
19/2.67
|
13.35
|
1.27
|
15.93
|
0.18
|
16.33
|
18.1
|
1118
|
|
THHN-14A
|
|
14
|
1/1.63
|
1.63
|
0.38
|
2.43
|
0.10
|
2.67
|
3.1
|
22
|
|
THHN-12A
|
12
|
1/2.05
|
2.05
|
0.38
|
2.85
|
0.10
|
3.09
|
3.5
|
36
|
|
THHN-10A
|
10
|
1/2.59
|
2.59
|
0.51
|
3.65
|
0.10
|
3.89
|
4.4
|
57
|
|
THHN-8A
|
8
|
1/3.26
|
3.26
|
0.76
|
4.82
|
0.13
|
5.12
|
5.7
|
94
|
We have alarms on extruding insulation andjacket, to keep 100% quality.
Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.
10
No. of Production Lines:Above 10
7
Number of Foreign Trading Staff:7
3
The company has 3 factories
Our workshops and certifications
Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.
Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.
Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.
How long is the transit period?
The transit time is usually around 15-25 days.
What is the policies and procedures related to returns, refunds, and warranties?
For all clients, usually we can offer a two-year warranty for all of products with correct installation and use, and refund or free more product offer, etc will be accepted too, if any issues happen within warranty period. Out of warranty period, we accept negotiation, if any need, with our clients under mutual agreement.
Conductor Structure of Power Cable
1. Conductors comply with IEC, AS/NZS and BSI standard requirements
2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.
3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
