Medium Voltage AAC AAAC ACSR 11KV 3 Core XLPE High Temp Insulated Spacer Power Suke Cable

The conductor material can be AAC AAAC ACSR etc.

XLPE covered cable is constituted by a compact round conductor, composed by aluminum strands, blocked or not, with a cross-linked polyethylene (XLPE) covered black or gray color.

The XLPE covered aluminum cable- 25kV Voltage Class is constituted by a compact round conductor, composed by aluminum strands, blocked or not, and with a cross-linked polyethylene (XLPE) covered in black or gray color, with special characteristics to be resistant against electric tracking and UV-rays.

As XLPE is a thermoses material, it enables operation up to 90°C continuously implying in higher capacity when compared to the thermoplastic materials.

The main application for covered aluminum cables is on compact overhead, primary power distribution, medium-voltage networks located in urban and wooded areas. These cables are an excellent technical and economic option for companies all over the world, since they feature such advantages as low manufacturing cost and ease of installation.

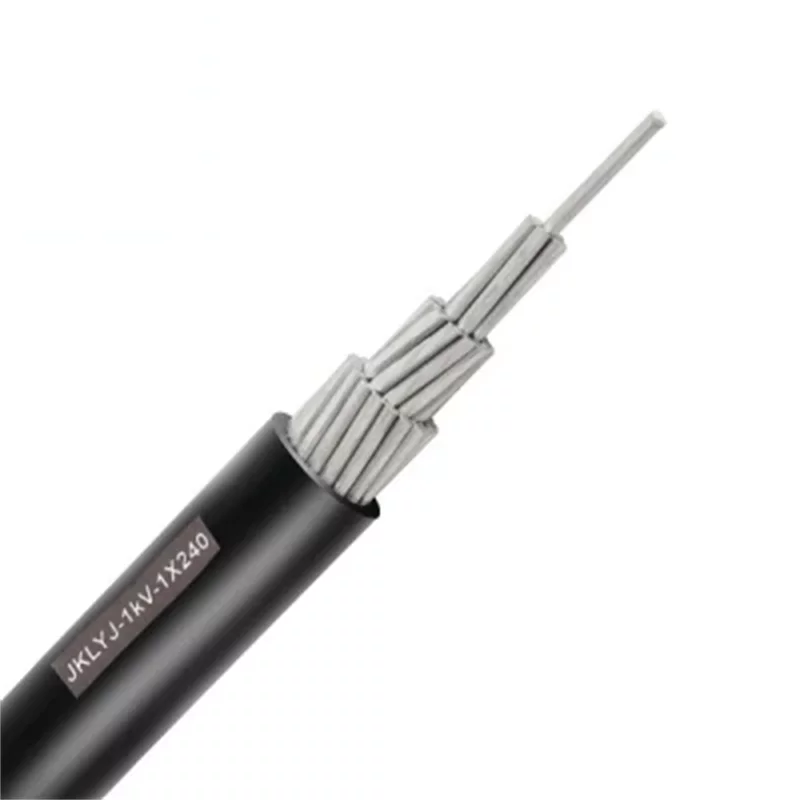

XLPE Aluminum Conductor Cable

Cross section	No. of wires	Conductor dia.	Overall Diameter	Minimum breaking load	Approx. weight	Max. DC-resistance at 20°C	Ampacity 90°C
[mm²]		[mm]	[mm]	[kgf]	[kg/km]	[Ohm/km]	[A]
35	7	7.1	15.7	464	235	0.868	186
50	7	8.2	16.8	663	305	0.641	224
70	19	9.7	18.3	928	370	0.443	280
95	19	11.5	20.1	1259	460	0.32	343
120	19	12.9	21.5	1591	560	0.253	397
150	19	14.2	22.8	1988	650	0.206	450
185	37	16.2	24.8	2452	770	0.164	519
240	37	18.4	27	3182	960	0.125	617
300	37	20.7	29.3	3977	1155	0.1	712

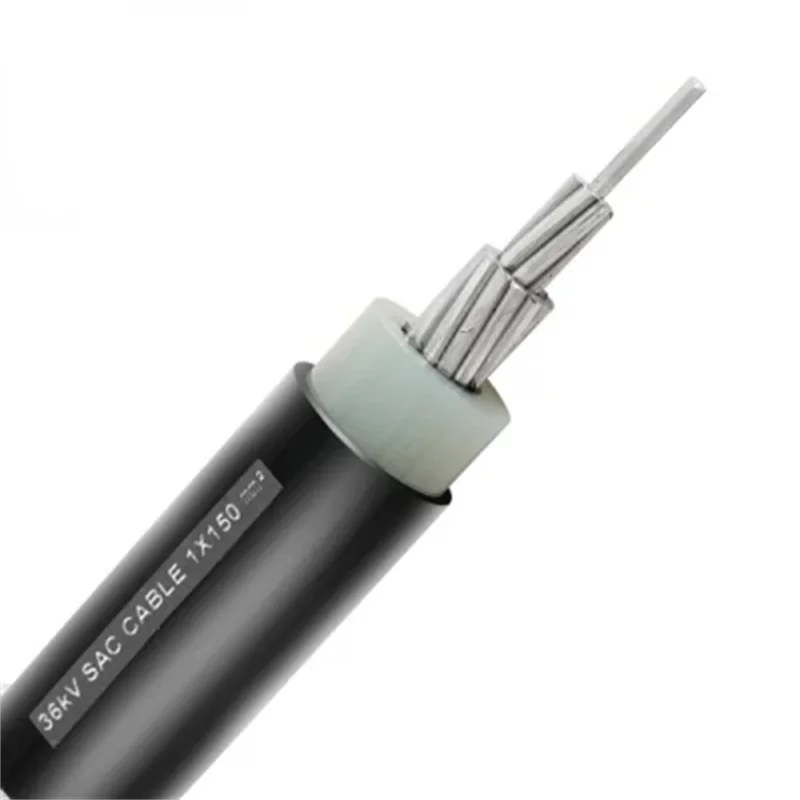

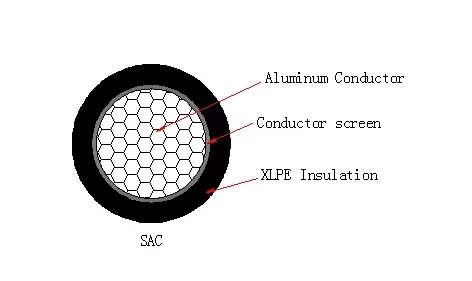

Aerial Spacer Cable 20 kv

Crossectional	Conductor Construction	Conductor Dia.	Thickness			Approx. Overal dia	Electical Resistance	Calc. Breaking Force	Air Flow Capacity at 20ºC	Approx. Conductor Weight
			Semi Conductor	Insulation	Jacket
Mm2	Nxmm	mm	mm	mm	mm	mm	Ω/km	N	A	Kg/km
70	12×2.77	10	0.4	3.2	3.2	23.5	0.443	10.420	229	509
120	15×3.30	13.2	0.4	3.2	3.2	26.7	0.253	18.518	321	729
150	15×3.66	14.8	0.4	3.2	3.2	28.4	0.206	22.457	371	826
185	30×2.88	16.2	0.4	3.2	3.2	29.7	0.164	28.974	429	959
Aerial Spacer Cable 33 kv
70	12×2.77	10	0.4	4.5	3.2	26.0	0.443	10.420	227	630
120	15×3.30	13.2	0.4	4.5	3.2	29.3	0.253	18.518	318	850
150	15×3.66	14.8	0.4	4.5	3.2	30.8	0.206	22.457	367	960
185	30×2.88	16.2	0.4	4.5	3.2	32.2	0.164	28.974	425	1100

About us

We have alarms on extruding insulation andjacket, to keep 100% quality.

Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.

No. of R&D Staff: 38

No. of Production Lines:Above 10

Number of Foreign Trading Staff:7

130

130 technical staff

The company has 3 factories

Our workshops and certifications

Wire And Cable R&D Workshop

XLPE cable production line

Custom power spacer cables production

Cable source manufacturing exporter

Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.

Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.

FAQ

What is building wire?

Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.

What is the lifespan of a typical electrical cable?

The lifespan can vary widely based on the type of cable and environmental factors, but many cables can last 20 years or more when properly installed and maintained.

What is your sample policy?

As a supplier, we believe that samples are necessary for both of us and our policy is to provide free samples whenever possible. However, if the sample structure is very complicated and we don't have it in stock and it needs to be customised, in this case we have to charge a sample fee. About the sample shipment, you need to pay the shipping fee, you can prepay us the shipping fee we help to send it by express agent, you can also choose express shipping fee to pay.

Conductor Structure of Power Cable

1. Conductors comply with IEC, AS/NZS and BSI standard requirements

2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.

3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
