Key attributes:
Industry-specific attributes
Application: Construction&Industrial
Conductor Material: Copper
Conductor Type: Bare, soft annealed stranded copper
Insulation Material: PVC (Polyvinyl-Chloride)
Rated voltage: low voltage
Other attributes:
Place of Origin：Fujian, China
Temperature ：50-100°c
Shape： /
Diameter：2mm-400mm2
Single Wire Size： /
Brand Name： Suke
Model Number: THHN/THWN-2
Type: insulated
Product name：THHN/THWN-2 Unscreened Cable
Standard：UL
Voltage：600V
Number of Cores： 1 Core
Conductor：Bare Annealed Copper
Insulation：PVC-FR/Nylon
MOQ： 100M
Sample：Availaible
Packaging and delivery
Selling Units: Single item
Single package size: 20X10X10 cm
Single gross weight: 2.000 kg
Description:PVC Insulated,Nylon cable ,600V Power Cable
Standard:
UL listed Stds. 83 & 1063 as: Type THHN Wire 90°C in dry locations, Type THHN Wire 90°C in wet locations
* A-A-59544, NEMA WC-5, UL-758
Application:
A heat-resistant thermoplastic (PVC) insulation with nylon jacket suitable for the type of service where the conductor
temperature does not exceed 90°C in dry location or 75°C in wet location. It is employed as insulation for class THHN
building wire

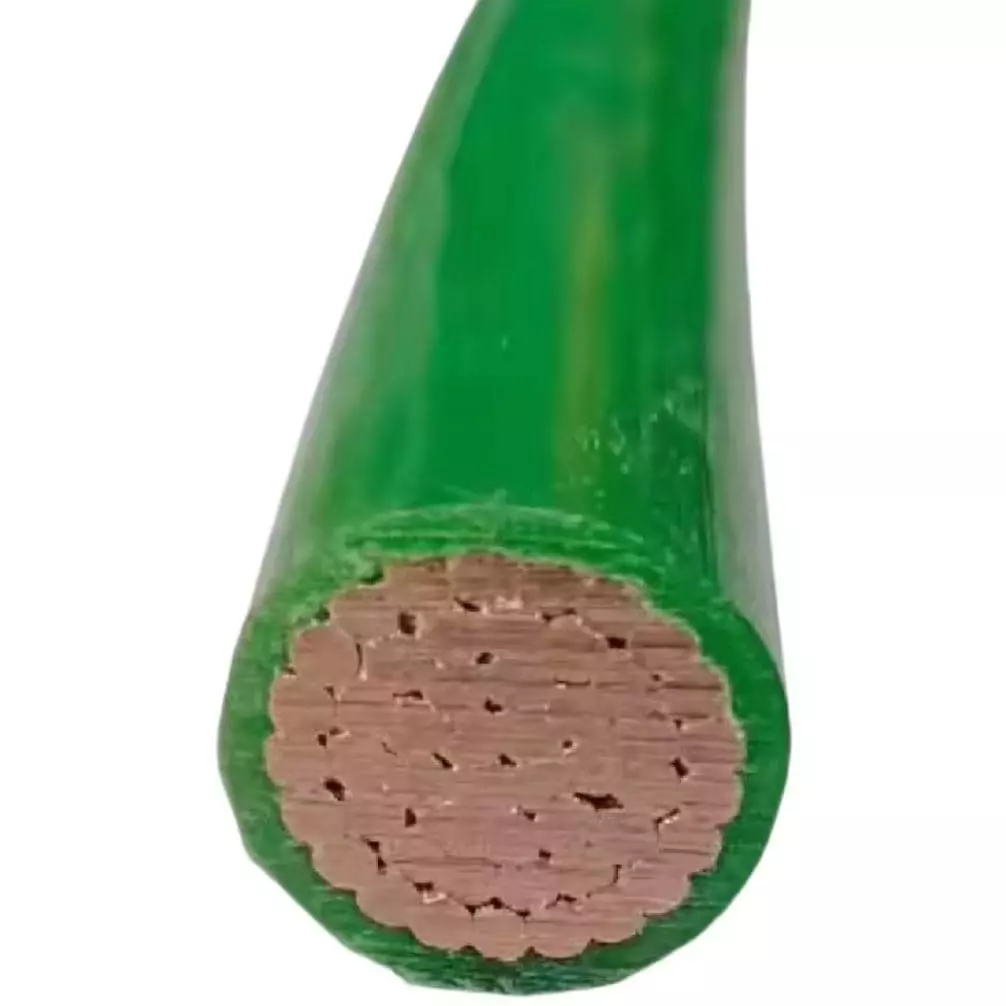

Construction:
1.Annealed Copper Solid/Strand Conductor
2.Core insulation of polyvinyl chloride (PVC) 90℃,Color can be on request
3.Jacket of Nylon
Specification:
|
THHN
|
THWN
|
THWN-2
|
|
T = Thermoplastic
|
T = Thermoplastic
|
T = Thermoplastic
|
|
HH = High Heat Resistance
|
H = Heat Resistance
|
H = Heat Resistance
|
|
W = Water Resistance
|
W = Water Resistance
|
|
N = Nylon Coating
|
N = Nylon Coating
|
N = Nylon Coating
|
|
Temperature Rating = 90°C (Dry)
|
Temperature Rating = 90°C (Dry), 75°C (Wet)
|
Temperature Rating = 90°C (Dry & Wet)
|
|
Conductor Size
(mm²)
|
Approximate AWG/MCM
|
Nos. Of Strand Wire
|
Conductor Diameter (mm)
|
Insulation Thickness (mm）
|
Jacket Thickness (mm)
|
OD
(mm)
|
Appr. Weight (kg/km)
|
20℃ Conductor D.C Resistance Max.(Ω/km)
|
Ampacity （A）
|
|
2.0
|
14/7
|
7
|
1.8
|
0.4
|
0.1
|
2.8
|
24
|
9.42
|
35
|
|
3.5
|
12/7
|
7
|
2.4
|
0.4
|
0.1
|
3.4
|
39.5
|
5.3
|
40
|
|
5.5
|
10/7
|
7
|
3.0
|
0.5
|
0.1
|
4.2
|
61
|
3.4
|
55
|
|
8.0
|
8/7
|
7
|
3.6
|
0.8
|
0.13
|
5.46
|
93.2
|
2.36
|
75
|
|
14
|
6/7
|
7
|
4.8
|
0.8
|
0.13
|
6.66
|
155
|
1.34
|
100
|
|
22
|
4/7
|
7
|
6.0
|
1.0
|
0.15
|
8.3
|
240
|
0.849
|
140
|
|
30
|
2/7
|
7
|
6.9
|
1.0
|
0.15
|
9.2
|
310
|
0.618
|
170
|
|
38
|
1-19
|
19
|
8.0
|
1.3
|
0.18
|
10.96
|
416
|
0.491
|
195
|
|
50
|
1/0-19
|
19
|
9.0
|
1.3
|
0.18
|
11.96
|
516
|
0.387
|
235
|
|
60
|
2/0-19
|
19
|
10
|
1.3
|
0.18
|
12.96
|
626
|
0.311
|
260
|
|
80
|
3/0-19
|
19
|
11.5
|
1.3
|
0.18
|
14.46
|
811
|
0.228
|
320
|
|
100
|
4/0-19
|
19
|
13
|
1.3
|
0.18
|
15.96
|
1021
|
0.187
|
370
|
|
125
|
250MCM
|
37
|
14.7
|
1.6
|
0.18
|
18.26
|
1306
|
0.138
|
420
|
|
150
|
300MCM
|
37
|
16.1
|
1.6
|
0.2
|
19.7
|
1553
|
0.124
|
475
|
|
175
|
350MCM
|
37
|
17.3
|
1.6
|
0.2
|
20.9
|
1786
|
0.104
|
535
|
|
200
|
400MCM
|
37
|
18.2
|
1.6
|
0.2
|
21.8
|
1960
|
0.094
|
570
|
|
250
|
500MCM
|
37
|
19.0
|
1.6
|
0.2
|
22.6
|
2393
|
0.0739
|
655
|
|
300
|
650MCM
|
61
|
20.5
|
1.8
|
0.23
|
24.6
|
2835
|
0.0601
|
720
|
|
400
|
800MCM
|
61
|
26.1
|
1.8
|
0.23
|
30.2
|
3936
|
0.0470
|
890
|
We have alarms on extruding insulation andjacket, to keep 100% quality.
Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.
10
No. of Production Lines:Above 10
7
Number of Foreign Trading Staff:7
3
The company has 3 factories
Our workshops and certifications
Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.
Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.
Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.
What is the lifespan of a typical electrical cable?
The lifespan can vary widely based on the type of cable and environmental factors, but many cables can last 20 years or more when properly installed and maintained.
What is your sample policy?
As a supplier, we believe that samples are necessary for both of us and our policy is to provide free samples whenever possible. However, if the sample structure is very complicated and we don't have it in stock and it needs to be customised, in this case we have to charge a sample fee. About the sample shipment, you need to pay the shipping fee, you can prepay us the shipping fee we help to send it by express agent, you can also choose express shipping fee to pay.
Conductor Structure of Power Cable
1. Conductors comply with IEC, AS/NZS and BSI standard requirements
2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.
3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
