Profession Exporter XLPE Insulated Sheath Submarine Offshore Underwater Deep Sea Power Suke Cable

Submarine Cable

submarine power cable is a major transmission cable for carrying electric power below the surface of the water. It is also possible to use submarine power cables beneath fresh water.

We have a VCV line with tower height measuring more than 180 meters and a series of advanced high-voltage cable and submarine cable production equipment capable of manufacturing onshore and submarine power cable of 500KV and below , They include

√  Two Finnish MAILLEFER  high-voltage cable VCV production lines
√  A German TROESTER  high-voltage cable VCV production line
√  Two  Finnish MAILLEFER  medium-voltage cable CCV production Lines,
√ A French POURTIER  frame type wire standing machine and a drum twister machine

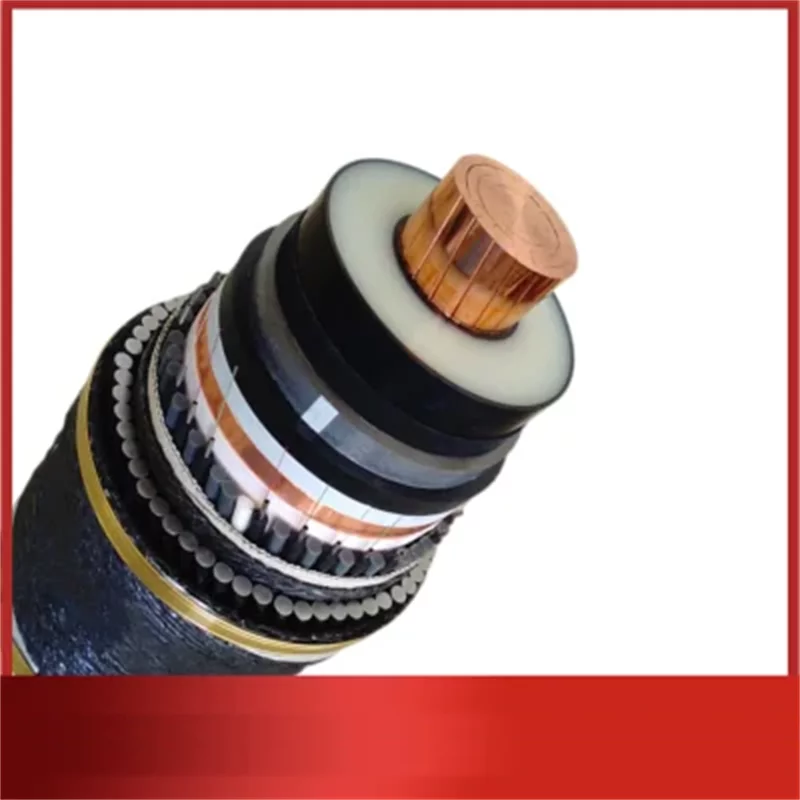

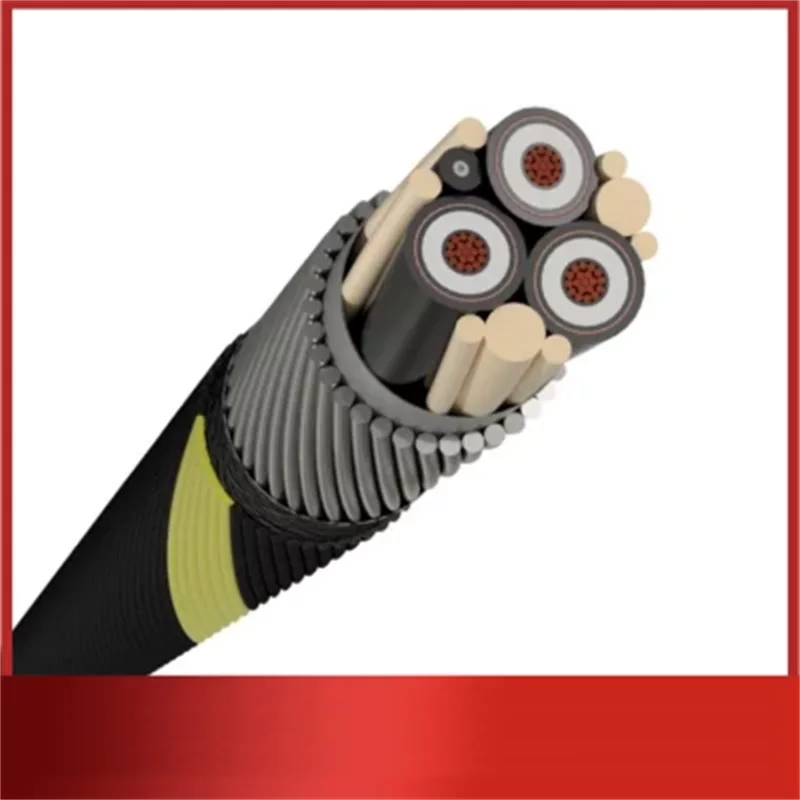

Construction

Conductor: Copper Conductor
Conductor Screen: Semi-conductive materials extruding layer
Insulation: XLPE
Insulation Screen: Semi-conductive materials extruding layer
Waterproof Layer: semi-conductive waterproof strip
Metal Screen: Lead Sheath
Sheath: PE
Fibre-optic Element: Fibre optic cable.
Separator: Binder tapes
Lapped inner layer: geled fabric and bitumen
Amouring: Galvanized steel wires filled with bitumen compound.
Lapped inner layer
Galvanized steel wires filled with bitumen compound.
Serving

System voltage:	30kV≤U≤500kV
Conductor:	Circular stranded copper or aluminum conductor constructed of round or profiled wires
	Max. CSA 3000sq.mm
Insulation:	Cross-linked polyethylene (XLPE)
Metallic Screen:	30kV≤U≤66kV: Copper wire, lead alloy sheath
	U≥110kV: Lead alloy sheath
Radial water barrier:	Semi-dry design: Laminated aluminum foil
	Dry design: Lead alloy sheath
Armor:	Three-core: Galvanized steel wire
	Single-core: Magnetic galvanized steel wire; Non-magnetic HD copper wire, stainless steel wire
Armor bedding & serving:	Polypropylene yarns

Reference Standards

CIGRE Recommendations: CIGRE 496, CIGRE 623.

Types & Purposes

For offshore wind farm

-Export cable to transport the total generated power from offshore substation to onshore substation For interconnection

-Interconnecting grids of countries

-Power supply from mainland to isolated islands

About us

Electric wire & cable manufacturing company

We have alarms on extruding insulation andjacket, to keep 100% quality.

Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.

No. of R&D Staff: 38

No. of Production Lines:Above 10

Number of Foreign Trading Staff:7

130

130 technical staff

The company has 3 factories

Our workshops and certifications

China cable manufacturing plant

Chinese wires & cables ltd factory

Industrial wire and cable manufacturers

Optical fiber manufacturing plant

Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.

Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.

FAQ

What is building wire?

Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.

How do I know if a cable is compliant with standards?

Look for certification marks or labels on the cable, such as those from IEC, UL, or other relevant regulatory bodies that indicate compliance with safety and performance standards.

What are armoured cables?

Armoured cables have an additional layer of protection (usually metal) to prevent physical damage. They are often used in harsh environments or where cables may be exposed to impact.

Conductor Structure of Power Cable

1. Conductors comply with IEC, AS/NZS and BSI standard requirements

2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.

3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
