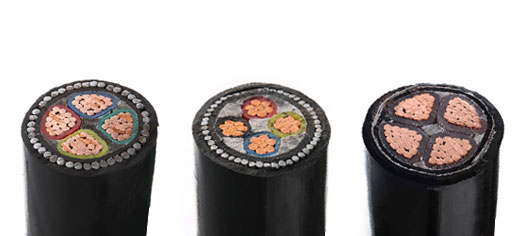

Multi-core PVC Insulated PVC Sheathed Armored Cable With Copper Conductor
Construction:
1. Conductor - Plain annealed class 2 stranded (compacted) copper
2. Insulation - Polyvinyl chloride compound (PVC)
3. Filler - Non-hygroscopic material
4. Binder tape - Non-hygroscopic material tape
5. Inner sheath - Polyvinyl chloride compound (PVC)
6. Armor - Galvanized steel wires
7. Binder tape - Non-hygroscopic material tape
8. Outer sheath - Polyvinyl chloride compound (PVC)
Application:
To be used for main power supply such as in low voltage distribution power networks， indoor and outdoor areas. It can be installed in ducts, in dry or wet locations, recommended for direct burial where requires higher electrical and mechanical protection.
Cross Section：
2C1.5~2C400mm2
3C1.5~3C400mm2
4C1.5~4C400mm2
5C1.5~5C400mm2
2C+E2.5~2C+E400mm2
3C+E2.5~3C+E400mm2
4C+E2.5~4C+E400mm2
Temperature characteristics:
Conductor operating temperature: -15℃~70℃
Min. temperatrue laying condition: 0℃
Conductor short-circuit operating temperature (5s): 160℃(≤300mm²) 140℃(>300mm²)
Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) KV
High voltage test: 3.5kV / 5min
Color:
Insulation: According to customer requirements
Outer sheath: Black or according to customer requirements
Standard:
Cable design: IEC 60502-1 or AS/ZNS 5000.1
Conductor: IEC 60228 or AS/ZNS 1125
We have alarms on extruding insulation andjacket, to keep 100% quality.
Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.
10
No. of Production Lines:Above 10
7
Number of Foreign Trading Staff:7
3
The company has 3 factories
Our workshops and certifications
Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.
Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.
Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.
Conductor Structure of Power Cable
1. Conductors comply with IEC, AS/NZS and BSI standard requirements
2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.
3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
