Product Description

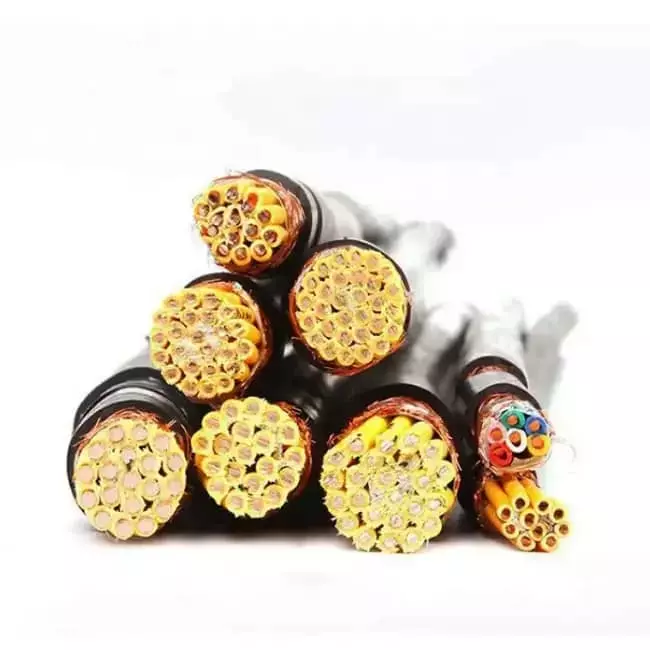

450/750V Flexible Multi-core Copper Conductor 0.75mm2 1.0mm2 1.5mm2 2.5mm2 Shielded PVC insulated LSZH Instrument Cables Equipment Cable electric control cable
1.Standards:
Manufacture according to GB/T 9330,IEC 60502-1
2. Cable structure:Structure:
2.1 Rated voltage: 450/750V
2.2 Conductor: Copper wire /tinned-copper wire, Class1, Class2, Class5
2.3 Insulation: PVC /PE /XLPE
2.4 Cabling: multi-core stranded
2.5 Shield(if required): Copper tape or CWS or Al-plastic tape with drain wire
2.6 Inner sheath (applicable if there is an armour layer): PVC/PE
2.7 Armour layer: Galvanized steel wire / Steel tape
2.8 Outer sheath: PVC/PE/LSHF
2.9 Other characteristics: Oil resistant, Flame retardant, Anti-corrosion, UV,etc.
3.Application:
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Suitable for direct burial applications.
4.Physical and Thermal Properties
Conductor: Annealed copper solid Class 1 or plain copper stranded Class 2 or flexible soft stranded copper class 5
Voltage Rating: 450V/750v
Test Voltage:2500V
Temperature range During operation (fixed state): -20°C - +70°C(PVC PE),-20°C - +90°C(XLPE)
Temperature range During Installation (Mobile state): -5°C - +40°C
Minimum bending radius: 10 X Overall Diameter
|
Type
|
Name
|
Section Area(mm2)
|
No. of Core
|
Application Site
|
|
KVV
|
Copper Conductor,PVC Insulated and Sheathed Control Cable
|
0.75 1.0 1.5 2.5
|
2-16
|
Permanent installation indoors,in cable ditches or pipes
|
|
4 6
|
2-14
|
|
10
|
2-10
|
|
KVVP
|
Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable
|
0.75 1.0 1.5 2.5
|
2-61
|
Permanent installation indoors,in cable ditches or pipes where shielding is required
|
|
4 6
|
2-14
|
|
10
|
2-10
|
|
KVVP2
|
Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable
|
0.75 1.0 1.5 2.5
|
4-10
|
Permanent installation indoors,in cable ditches or pipes where shielding is required
|
|
4 6
|
7-61
|
|
10
|
4-10
|
|
KVV22
|
Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable
|
0.75 1.0 1.5 2.5
|
7-61
|
Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
|
|
4 6
|
4-14
|
|
10
|
4-14
|
|
KVVR
|
Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable
|
0.5-2.5
|
4-61
|
Installation indoors where flexibility and movability are required
|
|
KVVRP
|
Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable
|
0.5 0.75 1.0
|
4-61
|
Installation indoors where flexibility shielding and movability are required
|
|
1.5 2.5
|
4-48
|
|
KYJV
|
Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable
|
0.75 1.0 1.5 2.5
|
2-16
|
Permanent installation indoors,in cable ditches or pipes
|
|
4 6
|
2-14
|
|
10
|
2-10
|
|
KYJVP
|
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable
|
0.75 1.0 1.5 2.5
|
2-61
|
Permanent installation indoors,in cable ditches or pipes where shielding is required
|
|
4 6
|
2-14
|
|
10
|
2-10
|
|
KYJV22
|
Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable
|
0.75 1.0 1.5 2.5
|
7-61
|
Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force
|
|
4 6
|
4-14
|
|
10
|
4-10
|
|
KYJVP2
|
Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable
|
0.75 1.0 1.5 2.5
|
7-61
|
Permanent installation indoors,in cable ditches or pipes where shielding is required
|
|
4 6
|
4-14
|
|
10
|
4-10
|
|
KYJVR
|
Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable
|
0.5-2.5
|
4-61
|
Installation indoors where flexibility and movability are required
|
|
KYJVRP
|
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable
|
0.5 0.75 1.0
|
4-61
|
|
|
|
|
1.5 2.5
|
4-48
|
Installation indoors where flexibility shielding and movability are required
|
We have alarms on extruding insulation andjacket, to keep 100% quality.
Founded in 1994, Fujian Suke Cable Technology Co., Ltd. Decades of wire and cable manufacturing experience enables us to be one of Top 20 cable manufacturers in China. Our products cover low/medium/extra high voltage power cable, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, LAN cable, coaxial cable etc, a total of nearly 30 series with 4,000 types and more than 50,000 specifications for various fields within over 100 countries.
10
No. of Production Lines:Above 10
7
Number of Foreign Trading Staff:7
3
The company has 3 factories
Our workshops and certifications
Our company has three plants possessing 200 square kilometers and over 4500 employees with 130 technicians creating annual export revenue exceeding 150 Million USD.
Also, our company has passed ISO 9001, ISO 14001, ISO45001, OHSAS18001,etc certificatiom, and has got CCC,TLC, TUV, VDE, UL, CE, SAA, BS etc. certificates for our products.
Building wire is generally used in house fixed wiring. It is PVC insulated unsheathed electric wire. The onstruction is CU/PVC.
How long is the transit period?
The transit time is usually around 20-30 days.
What is the lifespan of a typical electrical cable?
The lifespan can vary widely based on the type of cable and environmental factors, but many cables can last 20 years or more when properly installed and maintained.
Conductor Structure of Power Cable
1. Conductors comply with IEC, AS/NZS and BSI standard requirements
2. The conductors of multi-core have different shapes. The single-core is circular. The shape of Multi-core cable with size up to and 35m2 can be circular, semicircular and fan-shaped, the conductor with size over and 50m2 are circular and semicircle.
3. A single core is allowed with size below 16m2. Conductor More than 25m2 are multi strands.
